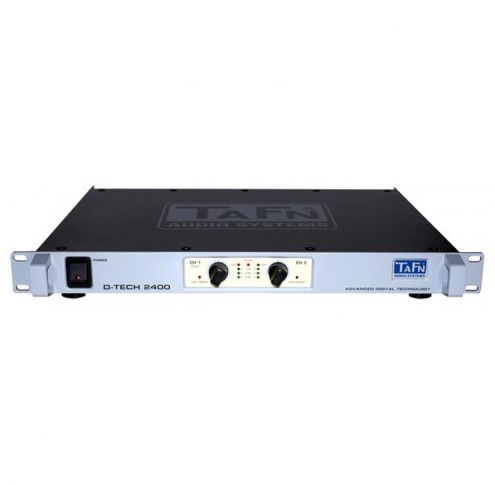

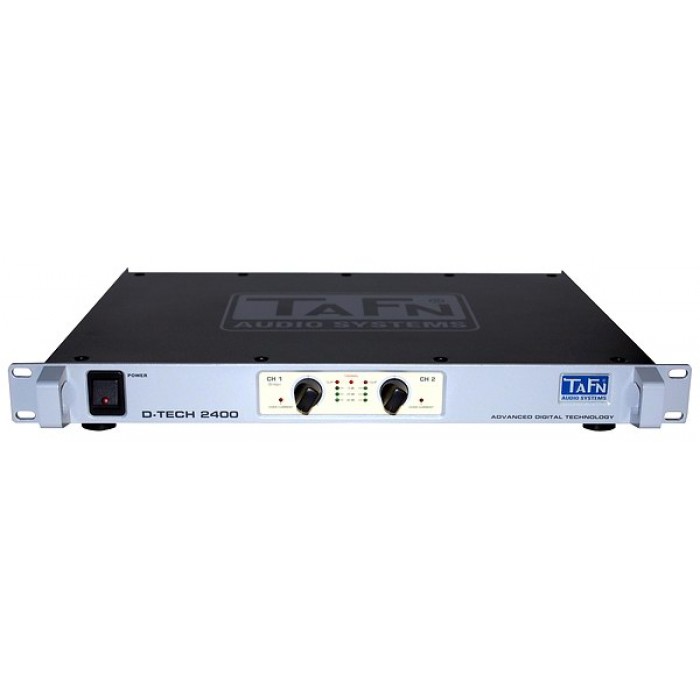

D tech 2400 amplifier

Mã sản phẩm: D tech 2400 amplifier

Nhà sản xuất: TAFN
Tình trạng: Còn hàng

Hotline hỗ trợ 24/7: 0903831080

Giá : 0 đ

Đặt hàng ngay

2 ohm Dual (Per ch.) 1350W RMS*

2.66 ohm Dual (per.ch) 1400W RMS**

4 ohm Dual (Per ch.) 980W RMS

8 ohm Dual (Per ch.) 520W RMS

4 ohm Bridge - Mono 2700W RMS*

8 ohm Bridge - Mono 1960W RMS

16 ohm Bridge - Mono 1040W RMS

D-TECH 2400 is a highly reliable advanced digital power amplifier capable of delivering high power consistently. it is long proven as an amplifier of choice in a wide range of high-power applications. Very small in size and is highly efficient. Reproduces sound with outstanding clarity and stability like never before possible with analog amplifiers.

Unmatched power in a 1U chassis

High damping factor even when clipping

  Very stable output at any load
  Short circuit-able speaker outputs
  Top-of-range Neutrik connectors
  Highly portable, light weight

Very high AC voltage tolerance range

Specifications:

Sensitivity for full rated power	1.4 Volts RMS or 0.775 Volts
Frequency Response 20 Hz to 20 KHz	1dB at any power level
Signal to Noise ratio 20 Hz to 20 KHz	More than 103 dB
Total Harmonic Distortion (THD)	0.1%
Intermodulation Distortion (IMD)	0.05%
Damping Factor	800 From 20 Hz to 400 Hz.
Load Impedance	Safe with all types of loads
Output power stereo mode at 8 ohm (stereo)	520 + 520 Watts RMS (both channels driven)
Output power stereo mode at 4 ohm (stereo)	980 + 980 Watts RMS (both channels driven)
Output power stereo mode at 2.66 ohm (stereo)	1400 + 1400 Watts RMS (both channels driven)
Output power stereo mode at 2 ohm (stereo)	1350 + 1350 Watts RMS (current limited by AGC)
Output power bridged mode at 16 ohm (mono)	1040 Watts RMS
Output power bridged mode at 8 ohm (mono)	1960 Watts RMS
Output power bridged mode at 4 ohm (mono)	2700 Watts RMS (current limited by AGC)
Overload and short-circuit protection system	Current limited controlled by AGC at 36A per CH.
Overheat protection system	Cut-off at internal 85 Deg. Resume at 45 Deg.
Power Supply protection	Soft start - Against all severe voltage fluctuations
AC Input Voltage without affecting max. Output Power	170 V - 260 Volts AC. (when loading 4 ohms)
AC Input Voltage at moderate power operation	140 V - 260 Volts AC. (when loading 4 ohms)
Dimensions W x D x H	480 x 350 x 44 mm (1U. 19" Rack mount )
Weight	7.03 Kg.
