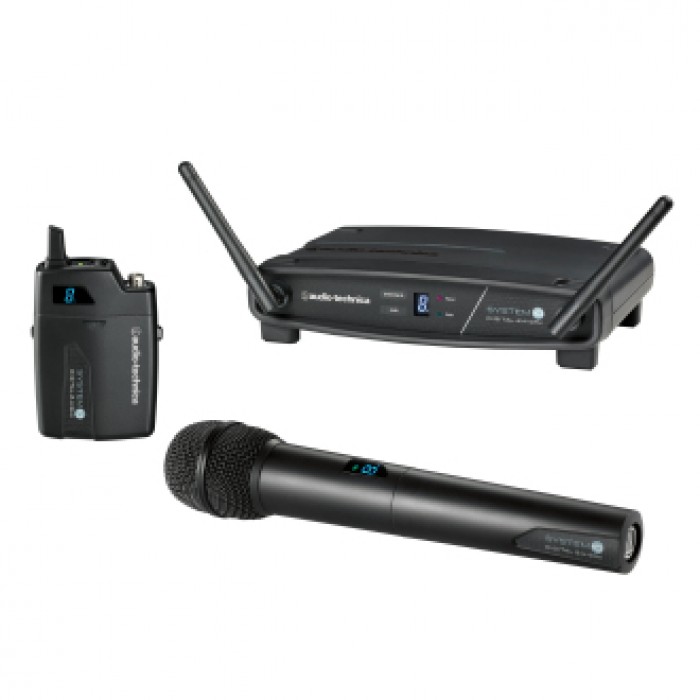

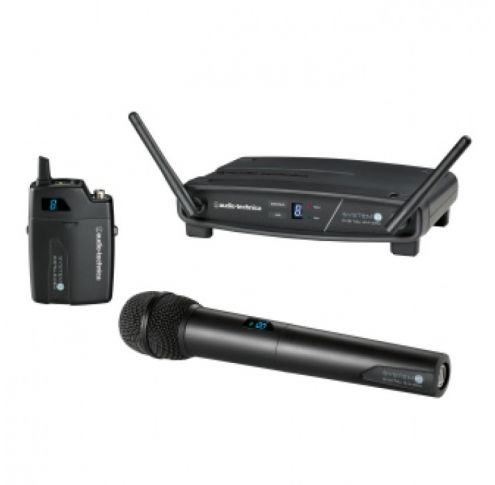

Audio - Technica system 10

Mã sản phẩm: ATW-R1100 / ATW-T 1002

Nhà sản xuất: AUDIO TECHNICA
Mã sản phẩm: system10

Bộ nhận: ATW-R1100
Bộ phát: ATW-T 1002

Tình trạng: Còn hàng

Hotline hỗ trợ 24/7: 0903831080

Giá : 0 đ

Đặt hàng ngay

Bộ nhận: ATW-R1100
Bộ phát ATW-T 1002

Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
2.4 GHz range – completely free from TV interference
Three levels of diversity assurance: frequency, time, & space
Automatic frequency selection for seamless, interference-free operation
Extremely easy operation with instantaneous channel selection, sync, and set-up
State-of-the-art digital receiver for reliable performance
Balanced XLR and unbalanced 1/4” output jacks with level control

OVERALL SYSTEM SPECIFICATIONS
Operating Frequencies	2.4 GHz ISM band
Dynamic Range	>109 dB (A-weighted), typical
Total Harmonic Distortion	<0.05% typical
Operating Range	30 m (100') typical Open range environment with no interfering signals
Operating Temperature Range	0° C to +40° C (32° F to 104° F) Battery performance may be reduced at very low temperatures
Frequency Response	20 Hz to 20 kHz Depending on microphone type

RECEIVER SPECIFICATIONS
Receiving System	Diversity (frequency/time/space)
Maximum Output Level	XLR, balanced: 0 dBV 1/4" (6.3 mm), unbalanced: +6 dBV
Power Supply	100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply
Dimensions	190.0 mm (7.48") W x 46.2 mm (1.82") H x 128.5 mm (5.06") D
Net Weight	290 grams (10.2 oz)
Accessory Included	Power supply

BODY-PACK TRANSMITTER SPECIFICATIONS
RF Power Output	10 mW
Spurious Emissions	Following federal and national regulations
Input Connections	Four-pin Locking Connector Pin 1: GND, Pin 2: INST INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +9V
Batteries	Two 1.5V AA not included
Battery Life	>7 hours (alkaline) Depending on battery type and use pattern
Dimensions	70.2 mm (2.76") W x 107.0 mm (4.21") H x 24.9 mm (0.98") D
Net Weight	100 grams (3.5 oz) without batteries

HANDHELD TRANSMITTER SPECIFICATIONS
RF Power Output	10 mW
Spurious Emissions	Following federal and national regulations
Batteries	Two 1.5V AA not included
Battery Life	>7 hours (alkaline) Depending on battery type and use pattern
Dimensions	254.8 mm (10.03") long, 50.0 mm (1.97") diameter
Net Weight	280 grams (9.9 oz) without batteries
Accessory Included	AT8456a Quiet-Flex™ stand clamp
